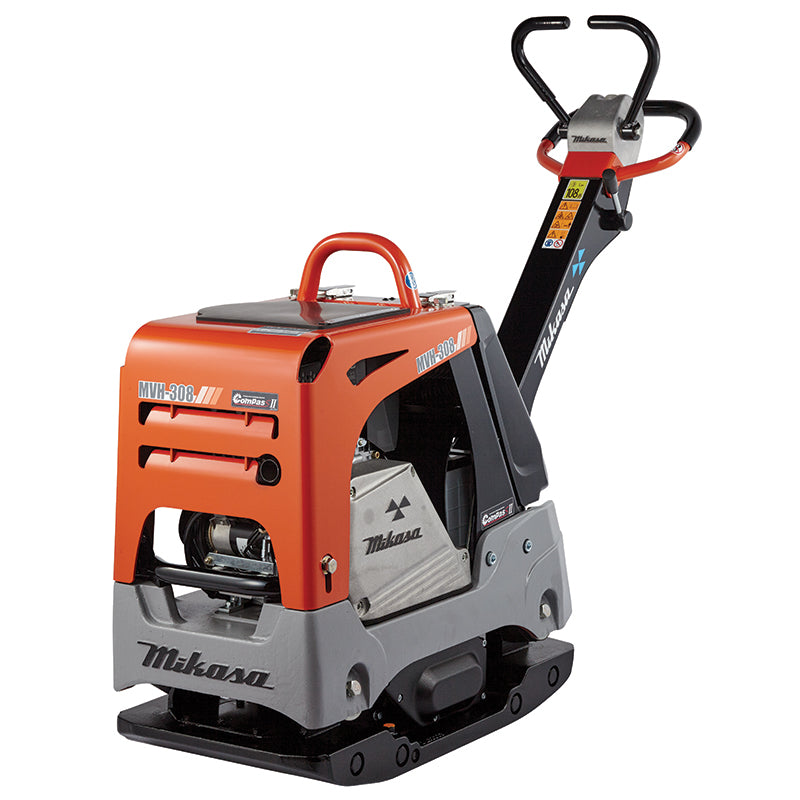

Mikasa Reversible Plate Compactor 6.7HP MVH-308DSY

Product Description

The premium Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils.

The Mikasa Reversible Plate Compactor MVH-308DSY offers exceptional operator comfort and safety with features including a cyclonic air filtration system, seamless forward/reverse motions, engine tacho meter and anti-vibration and height adjustable handle. The robust and durable design provides superior build quality and excellent compaction performance and results.

The Mikasa Reversible Plate Compactor MVH-308DSY is ideal for civil and commercial construction projects, drainage and trench works.

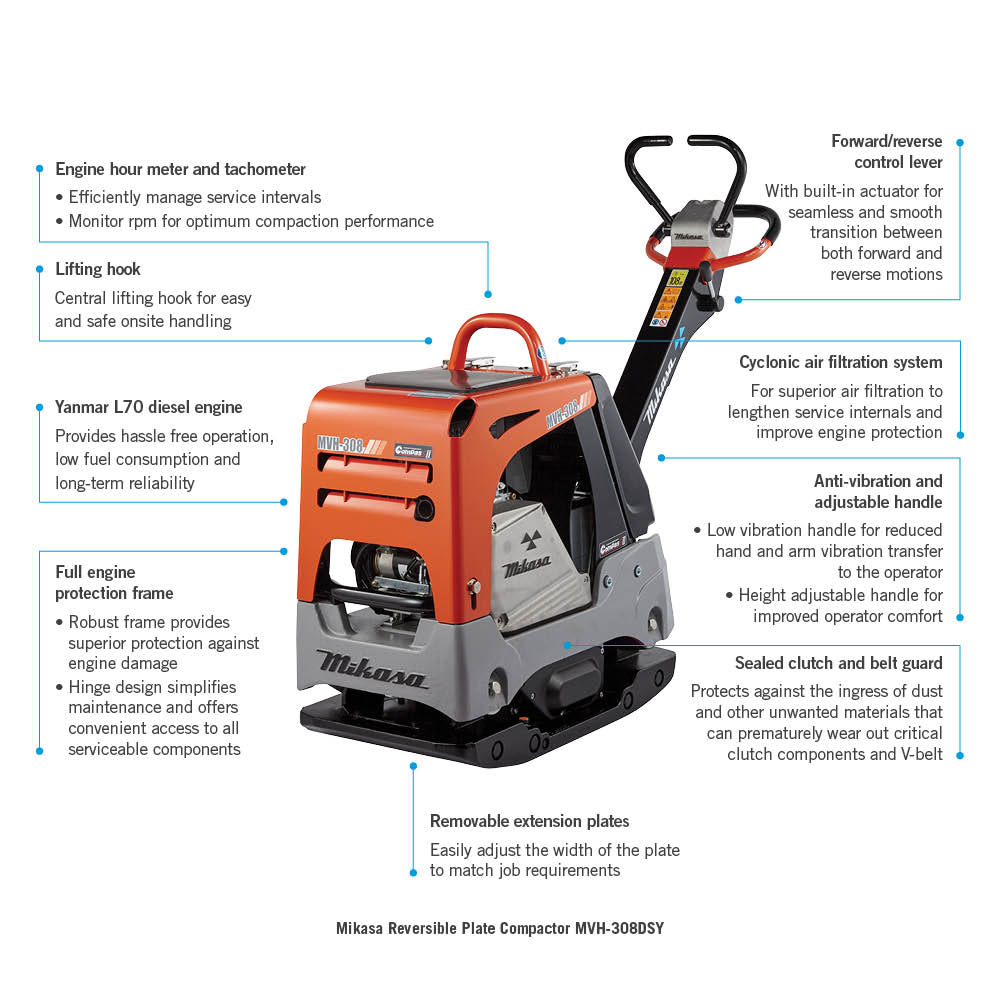

Features:
- Engine hour meter and tachometer to efficiently manage service intervals and monitor rpm for optimum compaction performance
- The forward/reverse control lever comes with a built-in actuator for seamless and smooth transition between both forward and reverse motions
- Cyclonic air filtration system delivers superior air filtration to lengthen service internals and improve engine protection
- Anti-vibration handle provides low hand and arm vibration transfer to the operator
- Height adjustable handle for improved operator comfort
- Robust, full engine protection frame provides superior protection against engine damage and the hinge design simplifies maintenance by offering convenient access to all serviceable components
- The sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch component and V-belt
- Central lifting hook for easy and safe onsite handling
- Yanmar L70 diesel engine provides hassle-free operation, low fuel consumption and long-term reliability
- Removable extension plates to easily adjust the width of the plate to match the job requirements
- 3 Year Mikasa product warranty

Specifications:
- Model: MVH-308DSY
- Engine and power: Yanmar L70 6.7 hp
- Fuel type: Diesel
- Operating weight (without extension plates): 341 kg
- Operating weight (with extension plates): 361 kg
- Plate size (without extension plates) (wxl) : 445 mm x 860 mm
- Plate size (with extension plates) (wxl) : 595 mm x 860 mm
- Centrifugal force (max): 45 kN
- Vibration frequency: 4400 vpm
- Max travel speed*: 27 m/min
- Max gradeability: 35%
- Max compacted area: 963 m2/h
- Average HAV: 2.9 m/s2

* Travel speeds vary based on different soil conditions. Specifications published are based on average performance results.
