Product Description
MSB Form is made of the highest quality zinc-plated steel and is designed to be lightweight, compact and extremely strong for all conditions. You can expect maximum results throughout the slab process, whether you’re using MSB Form for slab on grade, fixing down to concrete or plywood. Improve efficiency and safety, reduce labour and consumables ensuring a cost-effective business model with our adjustable concrete forms.
What's included:
- 30x A Frames
- 10x B Frames
- 10x C Frames
- 100x 900mm Rods
- 20x 1200mm Rods
- 20x 1600mm Rods
- 1x Pallet forklift provisions with lifting points
Dimensions (mm):
- A Frame: 600L x 60W x 385H (Insert reach: 350mm)
- B Frame: 700L x 60W x 385H (Insert reach: 450mm)
- C Frame: 800L x 60W x 385H (Insert reach: 550mm)

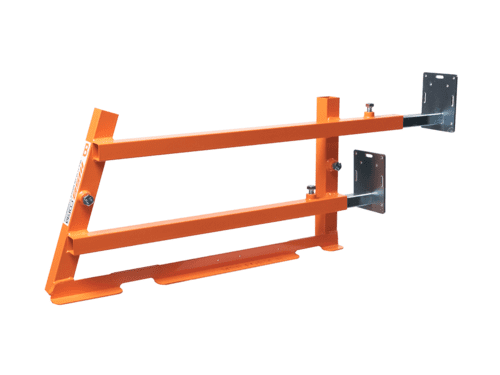

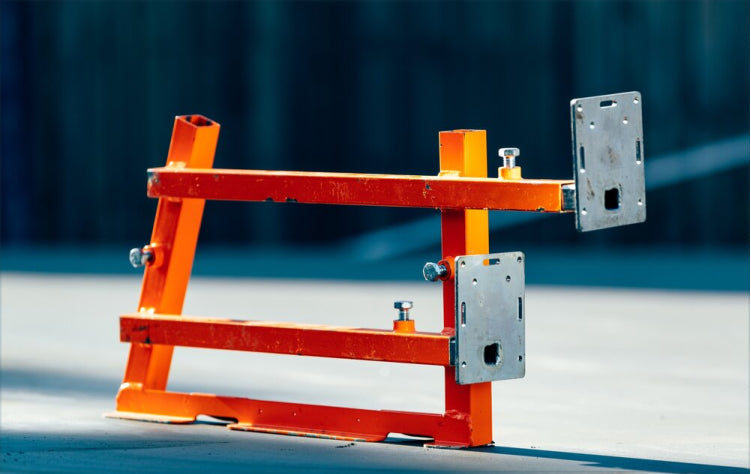

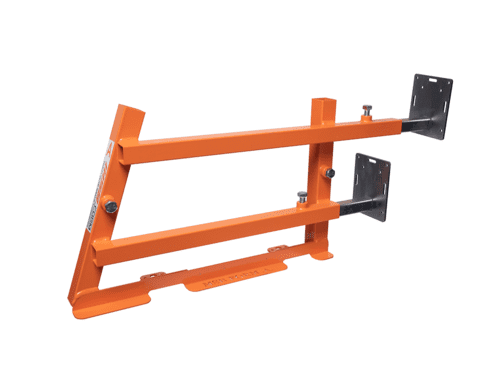

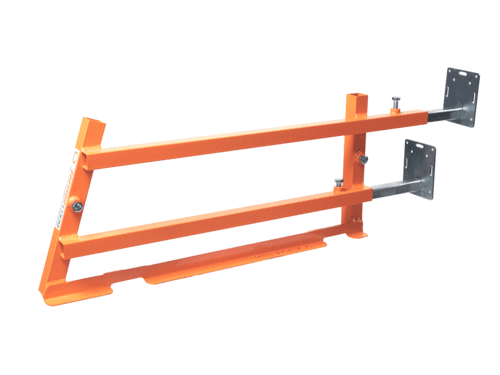

A, B, C FRAMES
- Perfect for conventional slabs and monolithic slabs
- Ideal for 310mm and 385mm waffle / 6” – 15” slab on grade

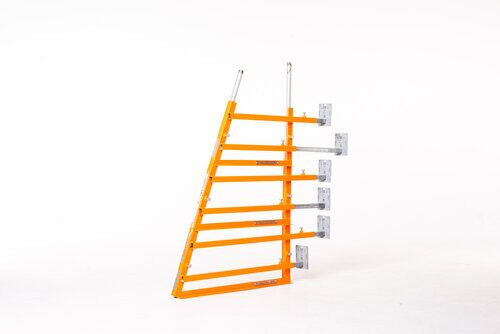

- Frames connect and stack up to 1.2m / 4 ft tall
- Can be fixed to concrete, plywood and ground
Use for:
- Brick ledge / rebate, curbs, slab-on-grade, monolithic slabs, paving, radius pours, tank pads, tilt-up slabs, turn-down slabs
Request A Free Quote
Please fill out the below form for a nonobligatory written quote on a MSB Form - Crate of A, B, C (50 Frames).
