Product Description

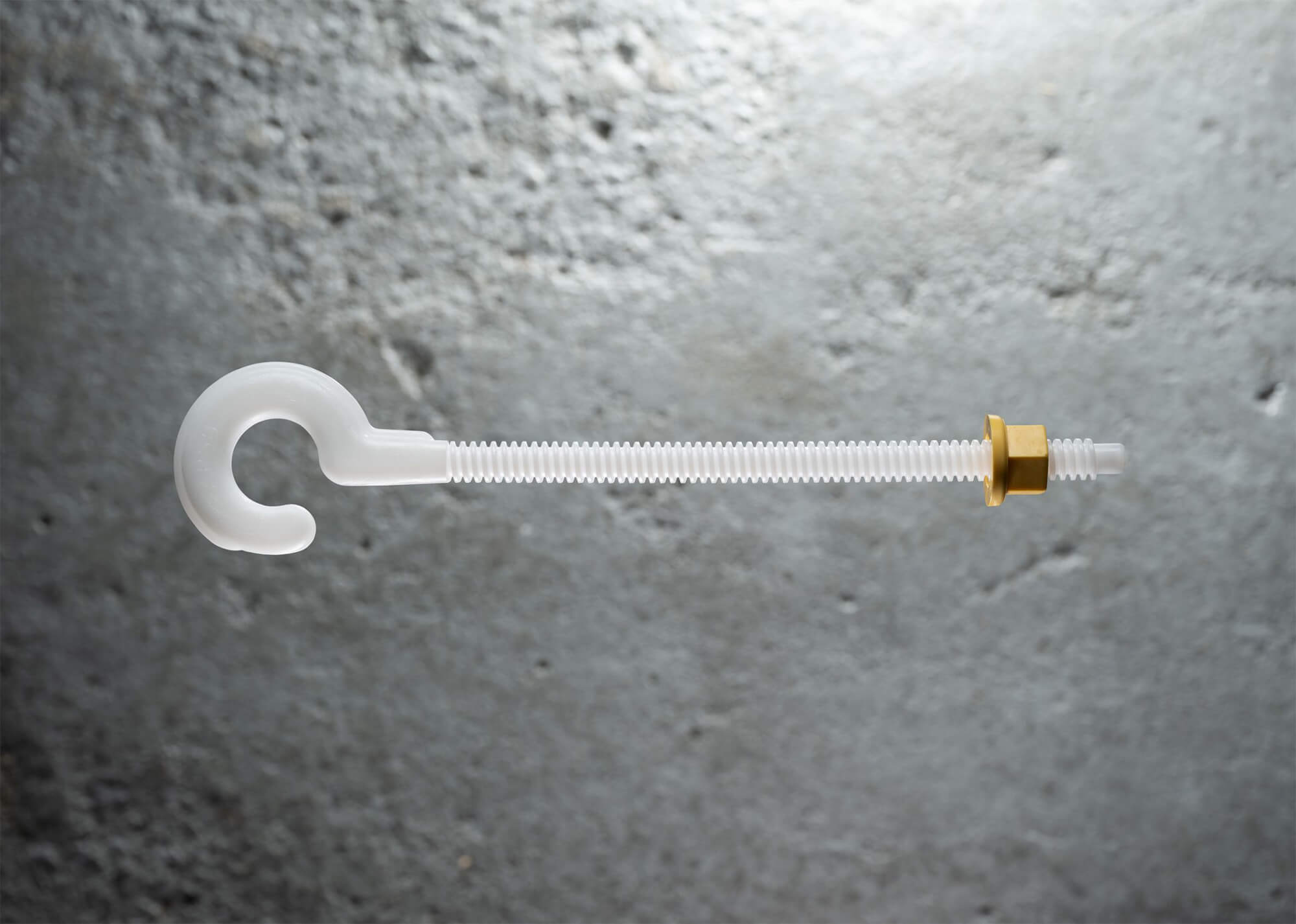

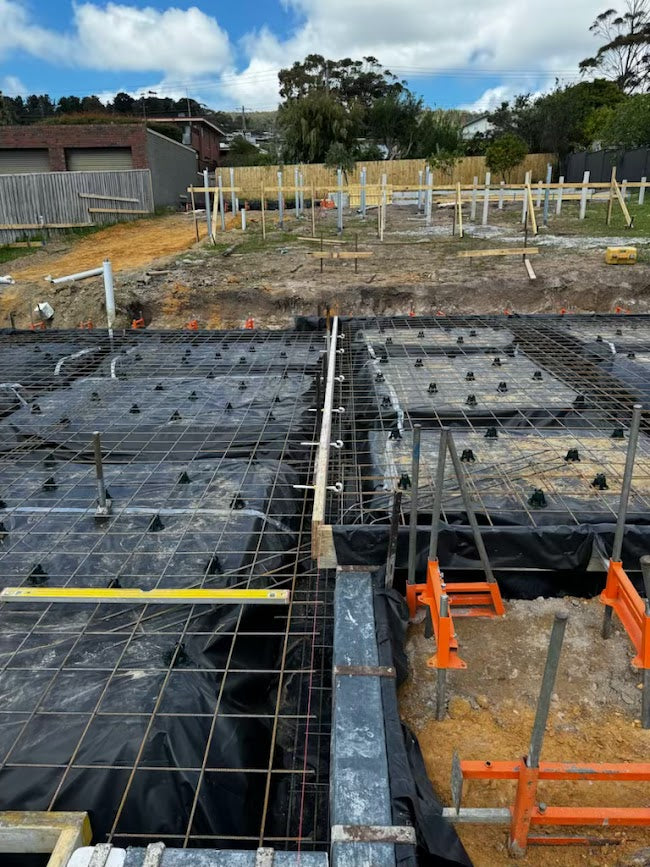

Formbolts are a replacement for timber bracing and star pickets when constructing a reinforced concrete slab. Simply hook Formbolts onto the steel mesh wires, feed the bolt through pre-drilled holes in the form board, then tighten the nut on the outer side of the board.
Qty: 50 bolts and nuts in a bag.
Formbolt Benefits:
- Eliminate 80% of star pickets
- Fast and easy installation
- Safer work site
- Holds mesh and pods in place
- Easy to work in constrained areas
- Straighter and more accurate foundations
- Proven performance since 2015
- Quick and easy clean up
- 100% designed and manufactured in Melbourne
- Tensile strength tested by NATA accredited ExcelPlas Polymer Testing to an average force of 1.737 kN
Specifications:
| Bolt Diameter | 12mm |
|---|---|
| Bolt Hook Opening | 10mm |
| Bolt Material | Engineered Polymer |
| Nut Diameter | 19mm Hex |
| Nut Material | Engineered Polymer |
| Bag Weight | 2.8kg |
| Nut & Bolt Weight | 56grams |
