Danley PaveX Expanda UPVC 3m Formwork with Capping (5pk)

Product Description

PaveX™ Expanda™ is a core component of the broader PaveX™ Residential Pavement eco-system. Designed and developed in conjunction with councils and concrete contractors alike, PaveX™ Expanda™ is a lightweight, corrosion-free and modular expansion joint system that is quick & easy to install.

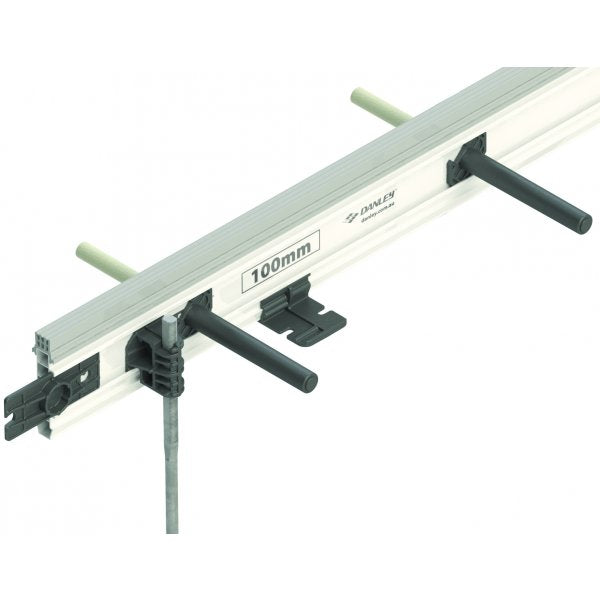

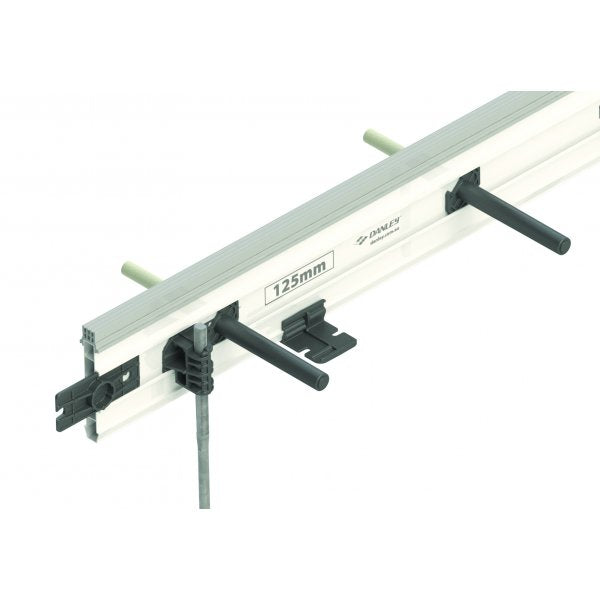

Available in 100mm and 125mm profiles, PaveX™ Expanda™ complies with the requirements of Australian Standard

AS 3727.1:2016 Residential Pavements. Innovative 14mm diameter Glass Fibre Reinforced Polymer dowels and sleeves provide load transfer between pavement sections. The unique design of the uPVC extruded PaveX™ Expanda™ sacrificial formwork profiles provide up to 10mm of thermal expansion of concrete and are job site tough.

Proudly designed and developed in Australia, PaveX™ Expanda™ is supported by best-in-class specification detail and installation guidelines. PaveX™ Expanda™ can be easily added to Council Master Specifications and is intuitive to use on site.

Features:
- Complies with the requirements of AS 3727.1:2016 Residential Pavements.
- Corrosion-free design, UPVC formwork profiles extruded to 3 metres in length.
- Available in 100mm and 125mm profiles.
- Supplied in kits - 15 lineal metres of joint, complete with all PaveX™ components.
- 14mm diameter GFRP dowels and sleeves provide load transfer.
- PaveX™ Expanda™ joint formwork provides for 10mm thermal expansion of concrete.
- Innovative formwork channel engages the stake bracket, dowel sleeves and joiner.
- Drive-n-Twist stake and stake bracket for levelling of formwork.
- Joiner doubles as a stake tool.
- Clip-on feet help position and support the formwork during installation & pour.
- Formwork supplied with pre-fitted, stay-in-place Rip-A-Strip capping, that produces clean laitance free joint lines.
- PaveX™ Expanda™ load supporting capping features a removable strip if joint fillers are specified.
- Supplied to site in a simple 3 pack kit.
